实践范例:设置页

设置页就是许多小的持久化偏好并排摆在一起。每个偏好都是它自己的一次 UsePersisted 调用、 有它自己的键 —— 并不存在一个中心化的设置对象,因而某个偏好搬家时也不需要迁移。 行的布局由单个辅助方法负责。

原语

关注点 API
逐项偏好存储 UsePersisted<T>(key, initial, scope)
作用域 PersistedScope.Window / Application
开关 ToggleSwitch(isOn, setOn)
选择 ComboBox(items, index, setIndex)
范围 Slider(value, min, max, setValue)
行布局辅助方法 static Element SettingsRow(...)

持久化状态

// Each preference is a separate UsePersisted call with its own key.
// The window scope ties the values to the host's lifetime; flip to
// PersistedScope.Application when the prefs should survive across
// windows.
var (notify, setNotify) = UsePersisted("prefs/notify", true,
    PersistedScope.Window);
var (theme, setTheme) = UsePersisted("prefs/theme", 0,
    PersistedScope.Window);
var (volume, setVolume) = UsePersisted("prefs/volume", 60.0,
    PersistedScope.Window);

三个偏好,三个键。每个偏好独立持久化,因此新增第四个只需在 Render() 中加一行 再配一个对应的控件。PersistedScope.Window 作用域把值保留在 宿主窗口之内 —— 对于进程级偏好(认证、区域设置、主题),请按 持久化 页的说明改用 PersistedScope.Application

渲染

return VStack(16,
    Heading("Settings"),
    SettingsRow("Notifications",
        ToggleSwitch(notify, setNotify)),
    SettingsRow("Theme",
        ComboBox(["System", "Light", "Dark"], theme, setTheme)),
    SettingsRow("Volume",
        Slider(volume, 0, 100, setVolume).Width(200))
).Padding(20);

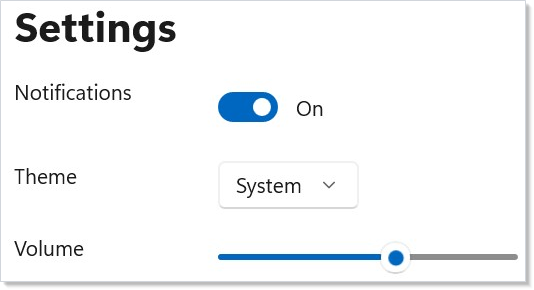

设置页

一个由 SettingsRow 组成的 VStack;每行是一个标签 + 一个控件。页面 因 Hook 状态变化而重渲染,协调器则就地修补既有的控件 —— 切换通知开关时,滑块不会重新挂载。

行辅助方法

// A `SettingsRow` is a label + control — two slots in an HStack with a
// fixed-width label so the controls line up across rows.
private static Element SettingsRow(string label, Element control) =>
    HStack(16,
        TextBlock(label).Width(120),
        control.AutomationName(label)
    );

固定宽度的标签让各行控件对齐,控件则获得与标签相同的文本作为其自动化名称。 该辅助方法是私有的静态方法,而不是 Component —— 它没有状态, 因此「返回 Element 的函数」才是正确的形态。

提示

每个偏好用一个键,而不是一整个大记录。 单键做法免去了「新增一个偏好」这种常见情形下的 带版本的结构迁移。如果两个偏好确实 相关(例如 theme + accentColor),就把它们放在同一条记录里; 否则让它们各自独立。

这里不要动用 UseReducer Redux 风格的 reducer 适合带有 跨字段不变式的状态;设置页恰恰相反 —— 每个偏好都是独立的。

只有当偏好需要比窗口活得更久时,才提升到 Application 作用域。 窗口作用域是更安全的默认值;一个跨窗口共享的 Application 作用域 键是个协调问题,持久化 页对此有详细说明。

后续阅读

  • 持久化 —— 作用域选择、迁移方案, 以及偏好必须跨重启存活时的磁盘桥模式。
  • 表单 —— 带约束的设置(端口号、文件路径)所要施加的校验面。
  • 样式 —— 通过 ApplicationTheme 把「主题」偏好接到真正的主题 切换上。
  • 实践范例:登录 —— 面向输入驱动表单的姊妹范例。
  • 实践范例索引 —— 回到图库。
